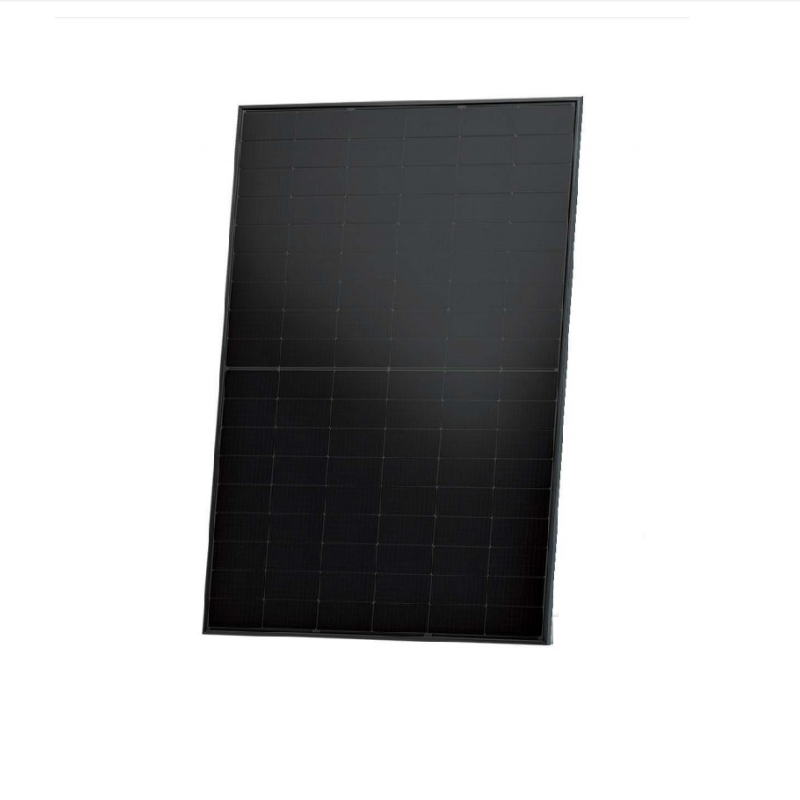

N Type 182MM 16BB Black Solar Module 450W-475W 96 half cells Topcon Mono Solar Panel for House Roof Solar Power System Install

Item NO.: SR(455-475)-108M8-H
Product Origin: China
Color: Black, silver, full black
Lead Time: 7-10 days
Order(MOQ): 37 pcs per pallet
Module Dimension: 1762*1134*30mm
Warranty: 30 Years Warranty
Certificate: TUV, CE
Products Details

Sunry monocrystalline solar panel ensures higher module efficiency and higher power output. Max. efficiency reaches to 23.77%.

Sunry solar photovoltaic modules are designed for large electrical power requirements. With 30 years warranty, Topcon solar cells offers high power, reliable performance for both on-grid and off-grid solar projects.

Features
  • Half-cell design brings higher efficiency which up to 23.77%.
  • Combination of series circuit and parallel circuit, reduced internal power loss.
  • 3 times EL tests throughout the whole process to ensure best quality and superior performance.
  • Innovative Full-Glue-Filled design of IP68 junction box for long-time weather resistance.
  • MBB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.
  • The passivated rear side and laser grooving process of N type cells to endow with the high efficiency.
  • >90% higher transmittance EVA, with higher GEL content to provide excellent encapsulation and protect cells from vibration for powerful durability.
  • Outstanding reliability proven by PVEL for stringent environment conditions: Sand, acid, salt and hail stones; 2400 Pa wind load and 5400 Pa snow load; Anti-PID function to guarantee high performance at low irradiance.
  • 30 years product power warranty, 12 years material and craftsmanship warranty.

Enquiry now

Parameters
Electrical Characteristics At Standard Test Conditions (STC)
Module SR(455-475)-108M8-H
Encapsulation Glass/EVA/Cell/EVA/Backsheet
Max. Power (W) 455 460 465 470 475
Max. Power Voltage (Vmp/V) 29.46 29.51 29.56 29.61 29.67
Max. Power Current (Imp/A) 15.44 15.59 15.73 15.87 16.01
Open Circuit Voltage (Voc/V) 34.66 34.72 34.78 34.84 34.90
Short Circuit Current (Isc/A) 16.41 16.56 16.71 16.86 17.01
Module Efficiency (%) 22.77 23.02 23.27 23.52 23.77
Power Tolerance (W) 0~+5W
Temperature Coefficient of Isc 0.046%/°C
Temperature Coefficient of Voc -0.25%/°C
Temperature Coefficient of Pmax -0.30%/°C
STC Irradiance 100w/m2, Cell Temperature 25℃, Air Mass 1.5
Packages
Product Weight: 21.0kg Packing: 37pcs/pallet, 962pcs/40HQ
Pallet dimension: 1800*1140*1260mm Pallet weight: 790kg



Applications

DC or AC Solar Energy System

  • Half cell solar panel with greater reliability over your solar panel system’s lifetime, with superior output in real-world conditions.​
  • High efficiency PERC mono solar panels is with a compact design and the flexibility to expand your system as your energy needs evolve, accommodating EV charging, AC storage, the electrification of home appliances and more.​
  • Used for DC off grid portable solar system or roof top or ground solar power system energy storage with battery.
  • Used for AC pv module microinverter systems combine industry-leading solar panel technology with advanced microinverter technology, enable ​to convert the​ electricity generated by your solar​ panels from direct current (DC) into​ alternating current (AC) that you can​ use directly in your home or export​ to the grid.​
  • Used for grid tie solar power plant, to produce solar clean energy.
  • Sunry solar panels with secure and sturdy packaging are widely sold abroad more than 86 countries, such as Lebanon, UAE, Spain, Ukraine, Poland, South Africa, Vietnam, and so on.
